Smooth Surface Low Friction E-Glass PTFE Coated Fiberglass Fabric. Manufacturer supply with corrosion resistance. Woven glass fiber fabric coated with PTFE. Buy direct from the factory.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Related Products
  • Detailed Photos
Overview

Basic Info.

Model NO.
TFCF
Thickness
0.2mm-5mm
Nominal Weight
100g-3000g
Filament Diameter
5um 7um 9um...
Width
0.8m - 4m or Custom
Coating Service Temperature
150-800ºC
Fabric Service Temperature
550ºC-1000ºC
Color
Any Color
Sample
Available
Properties
High Temperature Resistance, Chemical Stability
Properties2
Anti-Fray, Abrasion Resistance, Allergen Resistant
Properties3
Smoke Impassability, Easy to Cut and Sew
Application 2
Fireproof Mat, Insulation Blanket, Jacket, Cover
Application 3
Fabric Expansion Joint, Non-Metallic Compensator
Application 4
Fire Welding Blanket, Smoke and Fire Curtain
Properties4
Anti-Corrosion, Impermeable to Gases and Liquids
Transport Package
Bag+Carton+Pallet
Specification
custom
Origin
Jiangsu, China
HS Code
3918901000
Production Capacity
10, 000m/Day

Product Description

The fiberglass fabric is normally dusted and easy to disperse when something sharp plug in, even human finger. And after cutting the fiberglass fabric without coating will be raw edge with many small fibers spread. With the advantage of coatings, these issues will be fixed. And these coating also bring higher tensile strength, tear strength, tensile modulus, higher surface anti-abrasion performance. Also make fabric fire proof, water proof, good chemical resistant, smoke impassability, protection from spark and easy to cut and sew.
It is widely used for All types of thermal insulation and heat protection. Pipe connecting in many industries, Non-metallic compensators and expansion joints. Furnace curtains, welding curtains, welding blankets and fire blankets. Protective air cargo covers; noise control barriers. Gasket and packaging for power plant, printing, chemical and rubber industries.

Properties:
  • Anti-corrosion, anti-abrasion
  • Good heat resistance, electric resistance
  • Impermeable to gases
  • High Dimensional Stability
  • Low thermal conductivity coefficient
  • Good Chemical & Media Resistance
  • Easy to cut, fabricate and work with
  • Reduced irritation and less chance of catching
Applications:
  • Fire and Welding Blankets
  • Smoke and fire Curtains
  • Fabric expansion joints
  • Non-metallic compensator
  • Thermal insulation blankets covers jackets
  • Protective air cargo cover
  • noise control barriers
  • High-Temp Gasket and packaging


Specifications

PTFE / Teflon Coated / Impregnated Fiberglass / Glass Fiber Fabric Cloth
Item No. Thickness Max width Nominal Weigt Tensile strength Temperature res. Color
TF008 0.08mm 1250mm 140gsm 550/450N/5cm -70-260C Brown
TF008B 0.08mm 1250mm 140gsm 550/450N/5cm -70-260ºC Black
TF008W 0.08mm 1250mm 140gsm 550/450N/5cm -70-260C Cream
TF012 0.115mm 1250mm 220gsm 1100/1000N/5cm -70-2600 Brown
TF012B 0.115mm 1250mm 220gsm 1100/1000N/5m -70-260C Black
TF013 0.125mm 1250mm 250gsm 1100/1000N/5cm -70-260C Brown
TF013B 0.125mm 1250mm 250gsm 1100/1000N/5cm -70-260 C Black
TF015 0.145mm 1250mm 300gsm 1200/1100N/5cm -70-260C Brown
TF018 0.18mm 1250mm 340gsm 1800/1700N/5cm -70-260C Brown
TF025 0.23mm 2600mm 480gsm 2100/1800N/5cm -70-260C Brown
TF025B 0.23mm 2600mm 480gsm 2100/1800N/5cm -70-260C Black
TF030 0.30mm 3000mm 600gsm 2800/2400N/5cm -70-2600 brown
TF030B 0.30mm 3000mm 600gsm 2800/2400N/5cm -70-260C Black
TF035 0.33mm 2600mm 680gsm 2600/2300N/5cm -70-260C Brown
TF035B 0.33mm 2600mm 680gsm 2600/2300N/5cm -70-260C Black
TF040 0.38mm 3000mm 800gsm 3000/2500N/5cm -70-260C Brown
TF040B 0.38mm 3000mm 800gsm 3000/2500N/5cm -70-260C Black
TF055 0.55mm 3000mm 1080gsm 4400/4000N/5cm -70-260C Cream
TF070 0.70mm 3000mm 1250gsm 5000/4800N/5cm -70-260C Cream
TF095 0.95mm 3000mm 1550gsm 6000/5000N/5cm -70-260ºC Cream
TF100 1.00mm 3000mm 1700gsm 6000/5000N/5cm -70-260C Cream


PTFE Fiberglass / Glass Fiber Open Mesh Conveyor Belt
tem No. Mesh size Basic materials Weigth Res.Temperature Max width Tensile strength
TW001 1x1mm PTFE+glass 470ggsm -70-260C 3000mm 1600/1500N/5cm
TW001B 1x1mm PTFE+glass 470ggsm -70-260ºC 3000mm 1600/1500N/5cm
TW004 4x4mm PTFE+glass 480ggsm -70-260C 4000mm 2100/1500N/5cm
TW004B 4x4mm PTFE+glass 485ggsm -70-260C 4000mm 2100/1500N/5cm
TW004D 4x4mm PTFE+glass 580ggsm -70-260C 4000mm 2800/1580N/5cm
TW004DB 4x4mm PTFE+glass 580ggsm -70-260C 4000mm 2800/1580N/5cm
TW004K 4x4mm PTFE+glass 465ggsm -70-260ºC 4000mm 3500/3300N/5cm
TW10 10x10mm PTFE+glass 500ggsm -70-260ºC 3000mm 1100/1000N/5cm
TW051 0.5x1mm PTFE+glass 520ggsm -70-260ºC 3000mm 2200/1500N/5cm
TW225 2x2.5mm PTFE+glass 560ggsm -70-260C 3000mm 2200/1500N/5cm


PTFE Adhesive Fabric and Tape
PTFE glass fabric with backside adhesive(silicone)
Item No. Basic fabric thickness Total thickness Adhesion(to steel) Tensile strength Res.temperature
TF008AS 0.08mm 0.13mm 23N/100mm 900N/100mm -70-260 C
TF012AS 0.11mm 0.16mm 23N/100mm 1100N/100mm -70-260C
TF013AS 0.125mm 0.175mm 23N/100mm 1300N/100mm -70-260C
TF018AS 0.18mm 0.225mm 23N/100mm 1950N/100mm -70-260C
TF025AS 0.25mm 0.30mm 23 N/100mm 2250N/100mm -70-260C
Pure PTFE film with adhesive(silicone)
Item No. Basic fabric thickness Total thickness Adhesion(to steel) Tensile strength Res.temperature
TS004AS 0.04mm 0.08mm 22N/100mm 780N/100mm -70-260C
TS005AS 0.05mm 0.09mm 22 N/100mm 800N/100mm -70-260C
TS007AS 0.07mm 0.11mm 22 N/100mm 960N/100mm -70-260C
TSO08AS 0.08mm 0.13mm 22 N/100mm 1050N/100mm -70-260C
TS013AS 0.13mm 0.18mm 22 N/100mm 1650N/100mm -70-260 C
TS020AS 0.20mm 0.25mm 22 N/100mm 2350N/100mm -70-260C




Related Products

Silicone rubber coated fiberglass cloth / fabric

Ref No. Basic Fabric Style No. Coating Material Coating Side Finished Thickness(mm) Finished Weight
SRE0180801 E-Glass
7628		 Liquid/Wet Silicone Rubber 1 0.2 280gsm 8.26osy
SRE0181202 Liquid/Wet Silicone Rubber 2 0.25 320gsm 9.44osy
SRE0350801 E-Glass
2523		 Liquid/Wet Silicone Rubber 1 0.35 480gsm 14.15osy
SRE0351502 Liquid/Wet Silicone Rubber 2 0.4 550gsm 16.22osy
SSE0350502 Solid/Dry Silicone Rubber 2 0.35 450gsm 13.27osy
SSE0351302 Solid/Dry Silicone Rubber 2 0.4 530gsm 15.63osy
SRE090400801 E-Glass
3732-1		 Liquid/Wet Silicone Rubber 1 0.4 510gsm 15.04osy
SRE090401502 Liquid/Wet Silicone Rubber 2 0.45 580gsm 17.11osy
SSE090400502 Solid/Dry Silicone Rubber 2 0.43 480gsm 14.16osy
SSE090401302 Solid/Dry Silicone Rubber 2 0.45 560gsm 16.52osy
SRE110400801 E-Glass
3732-2		 Liquid/Wet Silicone Rubber 1 0.4 500gsm 14.75osy
SRE110401302 Liquid/Wet Silicone Rubber 2 0.45 550gsm 16.22osy
SSE110400502 Solid/Dry Silicone Rubber 2 0.4 480gsm 14.16osy
SRE0601501 E-Glass
666		 Liquid/Wet Silicone Rubber 1 0.65 790gsm 23.3osy
SRE0602602 Liquid/Wet Silicone Rubber 2 0.7 900gsm 26.54osy
SSE0602302 Solid/Dry Silicone Rubber 2 0.7 870gsm 25.66osy
SRE0801501 E-Glass
3784		 Liquid/Wet Silicone Rubber 1 0.8 990gsm 29.2osy
SRE0802602 Liquid/Wet Silicone Rubber 2 0.9 1100gsm 32.44osy
SSE0802002 Solid/Dry Silicone Rubber 2 0.9 1040gsm 30.67osy
SRE1001801 E-Glass
3786		 Liquid/Wet Silicone Rubber 1 1 1480gsm 43.65osy
SRE1003202 Liquid/Wet Silicone Rubber 2 1.1 1620gsm 47.78osy
SRE1002602 Solid/Dry Silicone Rubber 2 1.1 1560gsm 46.01osy
SRE1502201 E-Glass
3788		 Liquid/Wet Silicone Rubber 1 1.6 1820gsm 53.68osy
SRE1503802 Liquid/Wet Silicone Rubber 2 1.7 1980gsm 58.4osy
SSE1503202 Solid/Dry Silicone Rubber 2 1.7 1920gsm 56.63osy

Silicone rubber coated silica cloth / fabric (96% sio2)
Item No. Coating Norminal Weight Norminal Thickness Weave Pattern Standard Width(cm) Fabric Yarn Working Temperature(ºC)
gsm osy mm fabric coating
SRS0301202 2 sides 420 12.4 0.35 Twill 3*1 92 96% silica 1000 260-280
SRS0302002 2 sides 500 14.7 0.4 Twill 3*1 92 96% silica 1000 260-280
SRS0701502 2 sides 760 22.4 0.75 Satin 8HS 92/100/127 96% silica 1000 260-280
SRS0702002 2 sides 810 23.9 0.75 Satin 8HS 92/100/127 96% silica 1000 260-280
SRS0702602 2 sides 870 25.7 0.8 Satin 8HS 92/100/127 96% silica 1000 260-280
SRS0704002 2 sides 1010 29.8 0.85 Satin 8HS 92/100/127 96% silica 1000 260-280
SRS1002002 2 sides 1080 31.9 1.1 Satin 12HS 92/100 96% silica 1000 260-280
SRS1002602 2 sides 1140 33.6 1.15 Satin 12HS 92/100 96% silica 1000 260-280
SRS1004002 2 sides 1280 37.8 1.2 Satin 12HS 92/100 96% silica 1000 260-280
SRS1252002 2 sides 1320 38.9 1.4 Satin 12HS 92/100 96% silica 1000 260-280
SRS1252602 2 sides 1380 40.7 1.45 Satin 12HS 92/100 96% silica 1000 260-280
SRS1254002 2 sides 1520 44.8 1.5 Satin 12HS 92/100 96% silica 1000 260-280
SRS1255002 2 sides 1620 47.8 1.6 Satin 12HS 92/100 96% silica 1000 260-280
SRS1353002 2 sides 1500 44.2 1.1 Satin 12HS 92/100 96% silica 1000 260-280
SRS1354002 2 sides 1600 47.2 1.15 Satin 12HS 92/100 96% silica 1000 260-280
SRS1355002 2 sides 1700 50.1 1.2 Satin 12HS 92/100 96% silica 1000 260-280

Product Name Silicone rubber calendered fiberglass fabric
Baisc fabric Filament / Texturized fiberglass fabric, wire-inserted fiberglass fabric, silicone coated fiberglass fabric or custom
Surface treatment Silicone calendered
Color Multiple colors available
Thickness(mm) 0.2 - 5mm or even thicker
Weight  250 - 5000gsm or even heavier
Maximum width 2m
Coating content 40g - 3500g or custom
Service temperature -70ºC - 260ºC
Length per roll 30m, 50m or custom
Packing details Bag+carton+pallet, plywood box or custom
Other information Custom Service available

Vermiculite Coated Fiberglass Fabric / Cloth
Item No. Yarn Count Thickness Weight Weave Pattern
mm gsm osy
VET070 8×6 0.7 600 17.7 plain
VET080-1 8×6 0.8 650 19.2 plain
VET075 6×5 0.75 670 19.8 plain
VET080-2 6×4 0.8 840 24.8 plain
VET100-1 12×9 1 970 28.6 twill
VET100-2 6×4 1 1030 30.4 plain
VET120 5×3 1.2 1050 31.0 plain
VET150 6×4 1.5 1240 36.6 plain
VET200 12×5 2 1550 45.7 panama
VET250 12×5 2.5 1850 54.6 panama
VET300 12×5 3 2360 69.6 panama

Vermiculite Coated Stainless Steel Wire Reinforced Fiberglass Fabric / Cloth
Item No. Wire Type Thickness Weight Weave Pattern Yarn Type
mm gsm osy
VEGF045-1 304 0.45 470 13.9 Twill Filament
VEGF050-1 304 0.5 500 14.7 Twill Filament
VEGF050-2 304 0.5 520 15.3 Plain Filament
VEGF045-2 316 0.45 660 19.5 Satin Filament
VEGF065 316 0.65 670 19.8 Satin Filament
VEGF080 316 0.8 980 28.9 Satin Filament
VEGF100 316 1 1130 33.3 Plain Filament
VEGT075 316 0.75 630 18.6 Plain Textured
VEGT080 304 0.8 840 24.8 Plain Textured
VEGT120-1 304 1.2 950 28.0 Plain Textured
VEGT120-2 316 1.2 1230 36.3 Plain Textured
VEGT150 304 1.5 1240 36.6 Panama Textured

Vermiculite Coated Silica Cloth / Fabric
Item No. Thickness Nominal Weight Weave Pattern Standard Width(cm) Fabric Yarn Temperature Rating
mm gsm osy fabric coating
VES0700202 0.7 630 18.6 8HS Satin 92/100/127 96% silica 1000ºC 800ºC
VES1000202 1 910 26.8 12HS Satin 92/100 96% silica 1000ºC 800ºC
VES1250302 1.3 1150 33.9 12HS Satin  92/100 96% silica 1000ºC 800ºC
VES1350302 1.4 1240 36.6 12HS Satin 92/100 96% silica 1000ºC 800ºC
VES2000502 2 1500 44.2 Panama 92/100 96% silica 1000ºC 800ºC
VES3000702 3 1830 54.0 Twill 92/100 96% silica 1000ºC 800ºC

Polyurethane (PU)  Coated Filament Fiberglass Cloth / Fabric
Item No. Coating Yarn Count Norminal Thickness Norminal Weight Weave Pattern
warp weft
cm mm gsm osy
PUE0200201 1 side 17.3 12.2 0.2 230 6.8 Plain
PUE0350301 1 side 12 8 0.4 430 12.7 Plain
PUE0400301 1 side 18 13 0.45 460 13.6 Twill
PUE0600401 1 side 16.0 15 0.65 700 20.6 4H Satin
PUE0800601 1 side 18 13 0.85 900 26.5 8H Satin
PUE0400402 2 sides 17.3 12.2 0.2 250 7.4 Plain
PUE0350502 2 sides 12 8 0.4 450 13.3 Plain
PUE0400502 2 sides 18 13 0.5 480 14.2 Twill
PUE0600702 2 sides 16.0 15 0.8 730 21.5 4H Satin
PUE0801002 2 sides 18 13 0.9 940 27.7 8H Satin


Polyurethane (PU) Coated Satinless Steel Wire Reinforced Fiberglass Cloth / Fabric
Item No. Coating Thickness Weight Weave Pattern Wire Type
mm gsm
PUG045-1 1/2 sides 0.45-0.5 480/500 twill 304
PUG045-2 1/2 sides 0.45-0.5 670/690 satin 316
PUG050-1 1/2 sides 0.5-0.55 510/530 twill 304
PUG050-2 1/2 sides 0.5-0.55 530/550 plain 304
PUG065 1/2 sides 0.65-0.7 680/700 satin 316
PUG080 1/2 sides 0.8-0.85 1000/1060 satin 316
PUG100 1/2 sides 1-1.1 1150/1220 plain 316

Polyurethane (PU) Coated Silica Cloth / Fabric
Item No. Coating Thickness Norminal Weight Weave Pattern Standard Width(cm)
mm gsm osy
PUS030 2 sides 0.3 350 10.3 Twill 3*1 92
PUS070 2 sides 0.7 690 20.4 Satin 8HS 92/100/130
PUS100 2 sides 1 960 28.3 Satin 12HS 100
PUS125 2 sides 1.3 1200 35.4 Satin 12HS 92/100
PUS135 2 sides 1.4 1300 38.3 Satin 12HS 92/100


Acrylic Coated Fiberglass Cloth / Fabric
Item No. Coating Norminal Weight Thickness Weave Pattern
gsm osy mm
ACE035 2 sides 500 14.7 0.4 Plain
ACE040 2 sides 530 15.6 0.5 Crowfoot
ACE060 2 sides 810 23.9 0.7 8H Satin
ACE080 2 sides 1040 30.7 0.9 8H Satin
ACE110 2 sides 1550 45.7 1.2 12H satin
ACE160 2 sides 1900 56.0 1.7 12H satin
ACT040 2 sides 380 11.2 0.4 Plain
ACT070 2 sides 780 23.0 0.8 Plain
ACT080 2 sides 1020 30.1 0.9 Panama
ACT100 2 sides 1200 35.4 1.1 2/2 twill
ACT150 2 sides 1500 44.2 1.6 plain
ACT200 2 sides 1850 54.6 2 panama
ACT250 2 sides 2200 64.9 2.5 panama
ACT300 2 sides 2800 82.6 3 panama


Aluminum Foil Laminated Fiberglass Cloth Fabric
Product Name+ Aluminum Foil Laminated Fiberglass Fabric
Baisc fabric Filament / Texturized fiberglass fabric, wire-inserted fiberglass fabric, silica fabric or custom
Surface treatment Aluminum Foil Laminated
Foil thickness (μm) 7/14/18/25/38/50 or custom
Color Silver
Thickness(mm) 0.1 - 3mm or custom
Weight  90 - 2000gsm or custom
Standard width 100-152cm
Temp. resistance 150ºC
Length per roll 30m, 50m or custom
Packing details Bag+carton+pallet, plywood box or custom
Other information Custom Service available


Graphite / Graphene coated fiberglass fabric cloth
Product Name Graphite / Graphene coated fiberglass fabric
Baisc fabric Texturized fiberglass fabric, wire-inserted fiberglass fabric or custom
Surface treatment Graphite / Graphene coated
Color Black / Ash black or custom
Thickness(mm) 0.7 - 3mm or custom
Weight  600 - 2200gsm or custom
Maximum width 2m
Temp. resistance 700ºC / 800ºC
Length per roll 30m, 50m or custom
Packing details Bag+carton+pallet, plywood box or custom
Other information Custom Service available

Calcium silicate coated fiberglass fabric cloth
Product Name Calcium silicate coated fiberglass fabric
Baisc fabric Texturized fiberglass fabric, wire-inserted fiberglass fabric or custom
Surface treatment Calcium silicate coated
Color Ash black or custom
Thickness(mm) 0.7 - 3mm or custom
Weight  600 - 2200gsm or custom
Maximum width 2m
Temp. resistance 700ºC
Length per roll 30m, 50m or custom
Packing details Bag+carton+pallet, plywood box or custom
Other information Custom Service available

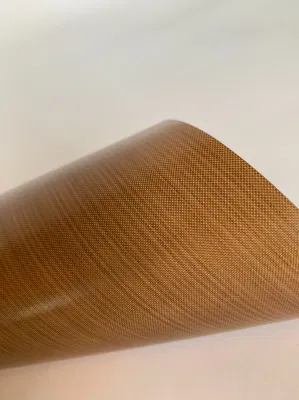

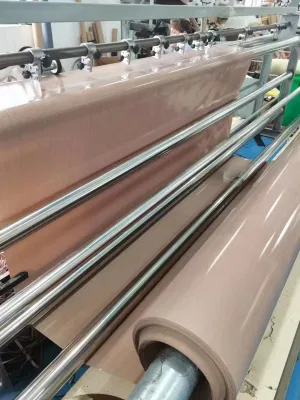

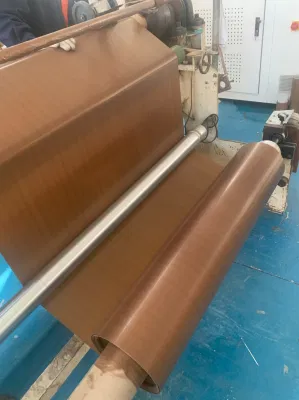

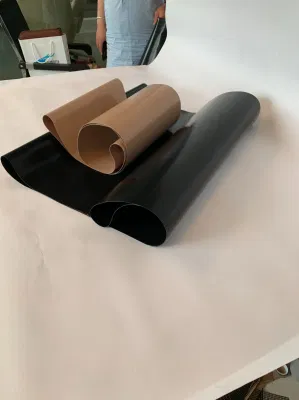

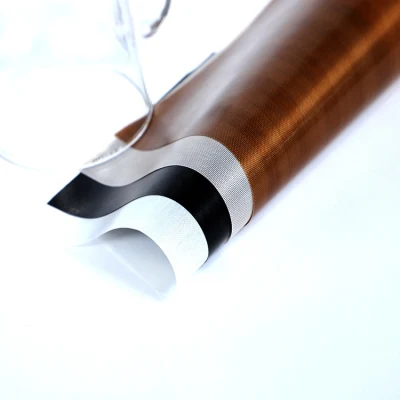

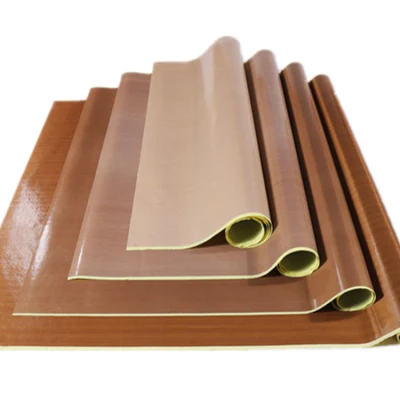

Detailed Photos

Smooth Surface Low Friction Manufacturer Supply E-Glass Corrosion Resistance PTFE Coated Fiberglass Fabric Woven Glass Fiber Fabric Coated with PTFE Smooth Surface Low Friction Manufacturer Supply E-Glass Corrosion Resistance PTFE Coated Fiberglass Fabric Woven Glass Fiber Fabric Coated with PTFE Smooth Surface Low Friction Manufacturer Supply E-Glass Corrosion Resistance PTFE Coated Fiberglass Fabric Woven Glass Fiber Fabric Coated with PTFE Smooth Surface Low Friction Manufacturer Supply E-Glass Corrosion Resistance PTFE Coated Fiberglass Fabric Woven Glass Fiber Fabric Coated with PTFE Smooth Surface Low Friction Manufacturer Supply E-Glass Corrosion Resistance PTFE Coated Fiberglass Fabric Woven Glass Fiber Fabric Coated with PTFE

Smooth Surface Low Friction Manufacturer Supply E-Glass Corrosion Resistance PTFE Coated Fiberglass Fabric Woven Glass Fiber Fabric Coated with PTFE

Hot Products

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
