Basic Info.
Model NO.
7628
Warp Yarn
ECG G75 1/0
Weft Yarn
ECG G75 1/0
Area Weight
201G/M2
Density
44*33

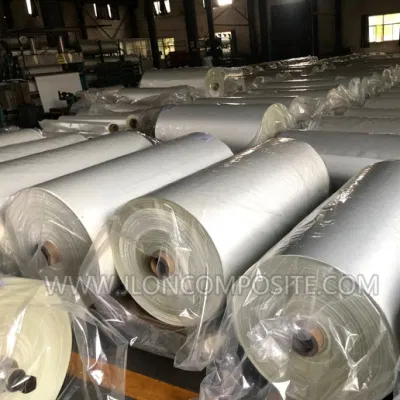

Transport Package
Roll with PE Bag
Specification
6OZ
Trademark
JLON
Origin
Changzhou, China
HS Code
70195200
Production Capacity
1000000m2
Product Description
Introduction:
7628 fiberglass fabric is an ultra thin and tight plain weave fabric made by E-glass fiberglass yarn (G75 1/0) .It's with a variety of applications after different surface treatment.
It is commonly used in Copper Clad Laminate, Insulation wrapping ,FRP or Coating
industry.
Features:
1.Used in the temperature from -70ºC to 550ºC.
2.Resistant to ozone, oxygen, sunlight and aging.
3.High insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4.Good flexibility and high surface friction
5.Chemical corrosion resistance
Applications:
FRP products
Copper Clad Laminate
Aluminium foil laminate for insulation
Insulation wrapping of mineral or rock wool or fiberglass slabs
Neoprene, Silicon and Teflon (PTFE) coated be used as a heat shield
Technical Data:
7628 fiberglass fabric is an ultra thin and tight plain weave fabric made by E-glass fiberglass yarn (G75 1/0) .It's with a variety of applications after different surface treatment.
It is commonly used in Copper Clad Laminate, Insulation wrapping ,FRP or Coating
industry.
Features:
1.Used in the temperature from -70ºC to 550ºC.
2.Resistant to ozone, oxygen, sunlight and aging.
3.High insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4.Good flexibility and high surface friction
5.Chemical corrosion resistance
Applications:
FRP products
Copper Clad Laminate
Aluminium foil laminate for insulation
Insulation wrapping of mineral or rock wool or fiberglass slabs
Neoprene, Silicon and Teflon (PTFE) coated be used as a heat shield
Technical Data:
| Property | Description | Value and Tolerance | Test Method | |
| English | Metric | |||
| Weave Type | Plain | ASMT D 579 | ||
| Finish | Greige | N/A | ||
| Warp count | 44 | 44 +/- 2 epi | 17.3 +/- 0.8 epc | ASTM D 3775 |
| Fill count | 31 | 31 +/- 2 ppi | 12.3 +/- 0.8 ppc | ASTM D 3775 |
| Warp Yarn Type | ECG 75 1/0 | EC9 68 1x0 | ASTM D 579 | |
| Fill Yarn Type | ECG 75 1/0 | EC9 68 1x0 | ASTM D 579 | |
| Selvedge | Feathered | 0.375 +/- 0.250 | 9.53 +/- 6.35 | Visual |
| Color | White | Visual | ||
| Property | Description | Value and Tolerance | Test Method | |
| English | Metric | |||
| LOI | < 4% | < 4% | ASTM D 4963 | |
| Greige Weight | 5.94 OSY +/- 6% | 201.0 g/m2 +/- 6% | ASTM D 3776 | |
| Thickness | 0.0070 +/- 0.001 in | 0.178 +/- 0.025 mm | ASTM D 1777 | |
| Warp Breaking strength | 250 lb/in. minimum | 438 N/cm minimum | ASTM D 5035 | |
| Weft Breaking Strength | 200 lb/in. minimum | 350 N/cm minimum | ASTM D 5035 | |
