Basic Info.
Model NO.
YS7008AJ
High Temperature Resistant
Super Release Surface
Transport Package
Carton
Specification
ROHS, FDA, LFGB, ISO
Trademark
Youngsun
Origin
China
HS Code
70195900
Production Capacity
10000sqm/Week
Product Description

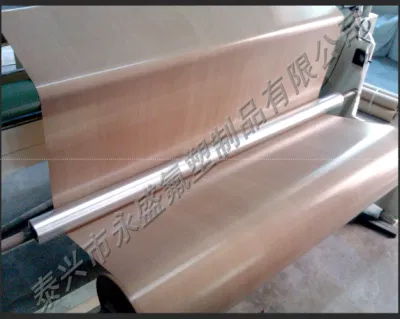

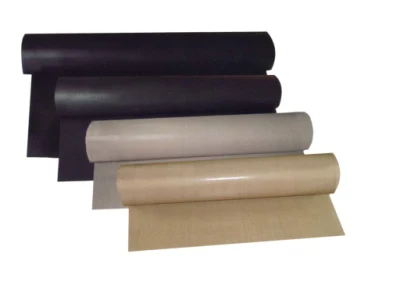

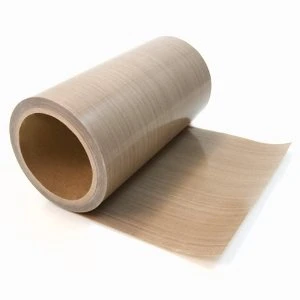

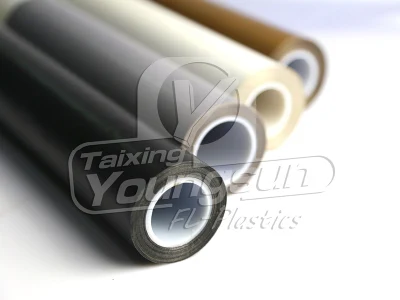

Youngsun use excellent fiberglass as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE resin then make it into various PTFE high temperature resistance cloth in different thickness and widths
Properties :
stable dimension, high intensity, elongation coefficient less 5 percent
good temperature resistance, 24 hours working temperature -70~260
low coefficient of friction and dielectric constant, good insulating ability
non stick, easy to clear stains and adhesives on the surface
good chemical resistance, it can resist all most of chemical medicines, acids, alkalis, and salt, it is fireproof, lower in aging.
| Model | Colour | Thickness | Max Width | Tensile Strength | Temperature Range |
| YS-9008AJ | Brown | 0.08mm | 1250mm | 500/480N/50mm | -140to360 |
| YS-9008BJ | Black | 0.08mm | 1250mm | 620/460N/50mm | -140to360 |
| YS-9008Y | Black | 0.08mm | 1250mm | 930/720N/50mm | -140to360 |
| YS-9013AJ | Brown | 0.13mm | 1250mm | 1100/1000N/50mm | -140to360 |
| YS-9013BJ | Black | 0.13mm | 1250mm | 1000/960N/50mm | -140to360 |
| YS-9013Y | Black | 0.13mm | 1250mm | 910/880N/50mm | -140to360 |
| YS-9018AJ | Brown | 0.18mm | 1250mm | 1600/1600N/50mm | -140to360 |
| YS-9018BJ | Black | 0.18mm | 1250mm | 1500/1500N/50mm | -140to360 |
| YS-9025AJ | Brown | 0.25mm | 2800mm | 2100/1800N/50mm | -140to360 |
| YS-9025BJ | Black | 0.25mm | 2800mm | 2800/2700N/50mm | -140to360 |
| YS-9035AJ | Brown | 0.35mm | 3200mm | 2700/2600N/50mm | -140to360 |
| YS-9035BJ | Black | 0.35mm | 3200mm | 2100/2200N/50mm | -140to360 |
| YS-9040AJ | Brown | 0.40mm | 3500mm | 2900/3100N/50mm | -140to360 |
| YS-9040BJ | Black | 0.40mm | 3500mm | 3000/2900N/50mm | -140to360 |
| YS-9065AJ | Brown | 0.65mm | 4000mm | 4200/4000N/50mm | -140to360 |
| YS-9090AJ | Brown | 0.90mm | 4000mm | 6300/5800N/50mm | -140to360 |
| YS-9090BJ | Black | 0.90mm | 4000mm | 6150/5300N/50mm | -140to360 |
