Basic Info.
Model NO.
FRS
Classification
Hybrid Insulation Materials
Certification
RoHS
Color
Red, Blue, Silver, Gray, Black, Orange
Brand
Bstflex
Logo
Upon Custom Request
Transport Package
Carton Box
Specification
4-170 mm
Trademark
BSTFLEX
Origin
China
HS Code
701990
Production Capacity
2000m/Day
Product Description
SS corrugated metallic pipe protector sleeve stainless steel braided conduit insulation materials Silicone Coated Fiberglass Metal Hose Protective Covers

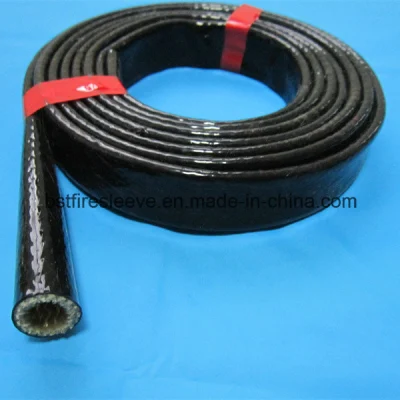

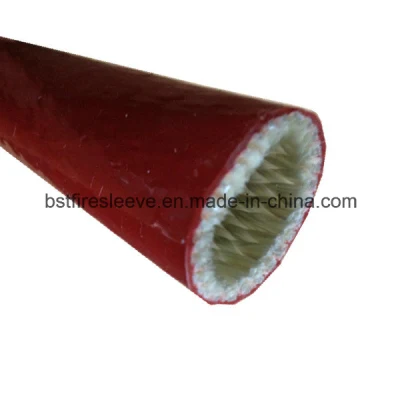

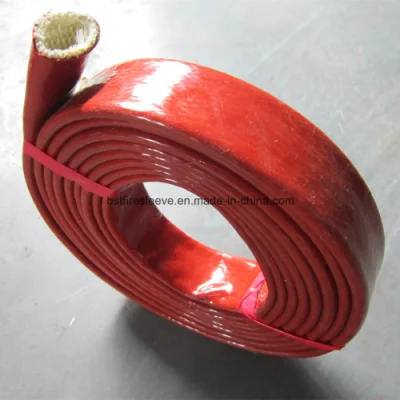

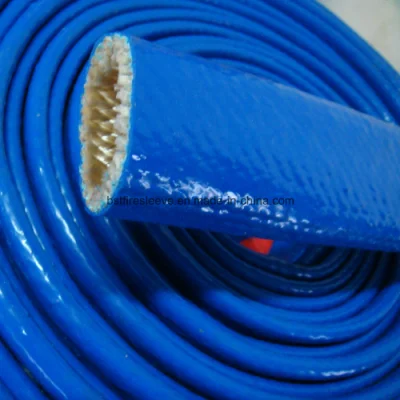

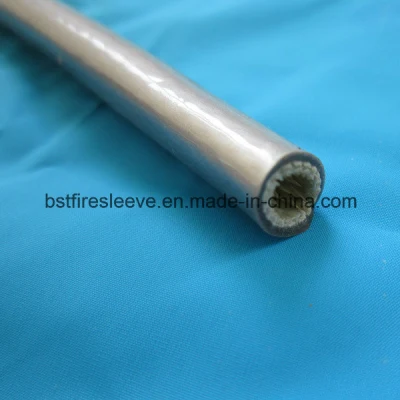

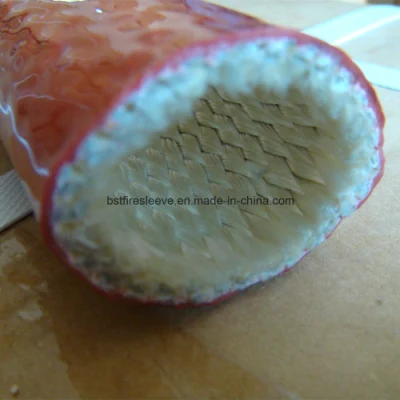

BST-EFRS Silicone Coated Fiberglass Metal Hose Protective Covers made of braided fiberglass yarns in a flexible substrate, then coated with a high grade silicone rubber. It is a self-extinguishing thermal protection sleeve. Silicone rubber on our fire sleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination.
It offers excellent short term flame protection and great insulation properties for high temperature.
Resistant to hydraulic fluids, oils and fuels and can protects against molten splash and flames.
It's mainly used in steelworks, glass and ceramic industry, in railway and some other fields, protect cables, wires and hoses with very high temperature.
BST-EFRS Silicone Coated Fiberglass Metal Hose Protective Covers made of braided fiberglass yarns in a flexible substrate, then coated with a high grade silicone rubber. It is a self-extinguishing thermal protection sleeve. Silicone rubber on our fire sleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination.
It offers excellent short term flame protection and great insulation properties for high temperature.
Resistant to hydraulic fluids, oils and fuels and can protects against molten splash and flames.
It's mainly used in steelworks, glass and ceramic industry, in railway and some other fields, protect cables, wires and hoses with very high temperature.
| Datasheet | |||||||||
| Part Number | Normal Inside diameter | Meter for spool | |||||||
| Inches | mm | Dash # | Meter | ||||||
| BST-EFRS-6 | 1/4 | 6 | -4 | 20 | |||||
| BST-EFRS-8 | 5/16 | 8 | -5 | 20 | |||||
| BST-EFRS-10 | 3/8 | 10 | -6 | 20 | |||||
| BST-EFRS-11 | 7/16 | 11 | -7 | 20 | |||||
| BST-EFRS-13 | 1/2 | 13 | -8 | 20 | |||||
| BST-EFRS-16 | 5/8 | 16 | -10 | 20 | |||||
| BST-EFRS-19 | 3/4 | 19 | -12 | 20 | |||||
| BST-EFRS-22 | 7/8 | 22 | -14 | 20 | |||||
| BST-EFRS-25 | 1 | 25 | -16 | 20 | |||||
| BST-EFRS-29 | 1 1/8 | 29 | -18 | 20 | |||||
| BST-EFRS-32 | 1 1/4 | 32 | -20 | 20 | |||||
| BST-EFRS-35 | 1 3/8 | 35 | -22 | 20 | |||||
| BST-EFRS-38 | 1 1/2 | 38 | -24 | 20 | |||||
| BST-EFRS-41 | 1 5/8 | 41 | -26 | 20 | |||||
| BST-EFRS-44 | 1 3/4 | 44 | -28 | 20 | |||||
| BST-EFRS-48 | 1 7/8 | 48 | -30 | 20 | |||||
| BST-EFRS-51 | 2 | 51 | -32 | 20 | |||||
| BST-EFRS-57 | 2 1/4 | 57 | 36 | 20 | |||||
| BST-EFRS-60 | 2 2/5 | 60 | -38 | 20 | |||||
| BST-EFRS-64 | 2 1/2 | 64 | -40 | 20 | |||||
| BST-EFRS-67 | 2 5/8 | 67 | -42 | 20 | |||||
| BST-EFRS-70 | 2 3/4 | 70 | -44 | 20 | |||||
| BST-EFRS-73 | 2 7/8 | 73 | -46 | 20 | |||||
| BST-EFRS-76 | 3 | 76 | -48 | 20 | |||||
| BST-EFRS-83 | 3 1/4 | 83 | -52 | 20 | |||||
| BST-EFRS-89 | 3 1/2 | 89 | -56 | 20 | |||||
| BST-EFRS-95 | 3 3/4 | 95 | -60 | 20 | |||||
| BST-EFRS-102 | 4 | 102 | -64 | 20 | |||||
| BST-EFRS-114 | 4 1/2 | 114 | -72 | 20 | |||||
| BST-EFRS-121 | 4 3/4 | 121 | -76 | 20 | |||||
| BST-EFRS-127 | 5 | 127 | -80 | 20 | |||||
| BST-EFRS-152 | 6 | 152 | -96 | 20 | |||||
