Basic Info.
Model NO.
FG025
Weave Type
Plain Woven
Fiberglass Type
E-Glass
Alkali Content
Medium
Color
Brown, Black, White, Blue
Temperature
-70ºC-260ºC
Width
1250mm
Feature
Waterproof, Insulation, Heat-Resistant
Thickness
0.13 mm - 0.40mm
Transport Package
with Plastic Foam Paper
Specification
can be customized
Trademark
Lonmax
Origin
China
HS Code
3919909090
Production Capacity
10000 Sqm/Month
Product Description
PTFE fiberglass adhesive fabric /cloth is made from fiberglass cloth, treated with sodium or special reagent on one side, then coated with adhesive. There are two types : the narrow tapes are normally without release paper and the wide ones are always with release paper.
Feature:
1) High temperature resistance (-70ºC~260ºC)
2) Surface smooth, non-stick and easy to clean.
3) Fire retardant.
4) Excellent dimensional stability and high strength.
5) High insulation, anti-ultraviolet, anti-static.
6) Resistant to chemical corrosion, strong acid, alkali and various organic solvents.
7) Easy to use, long service life.
Application:
1) High temperature roller coating, heating plate and de-moulding fixture.
2) Food, medicine and plastic bag heat seal.
3) Liner pasting for sliding chute, hopper and aviation mould, can also be applied in the cylinder of slurry machine, thermal plastic& de-moulding, and other industries, which is reusable and easy to replace.
4) Applicable to other surface treatment which need to be resistant to adhesion, corrosion and high temperature.
5) Used in packaging, thermoplastic, composite, heat sealing, electronic and electrical industries.

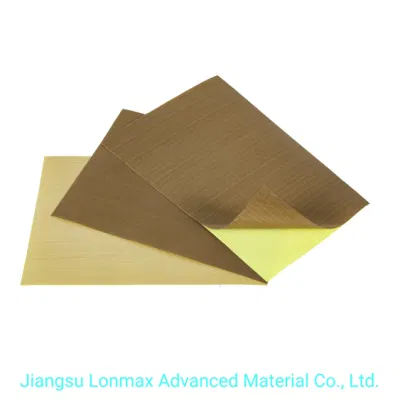

PTFE adhesive fabric /cloth with release paper.
Size and color can be customized.
Size and color can be customized.

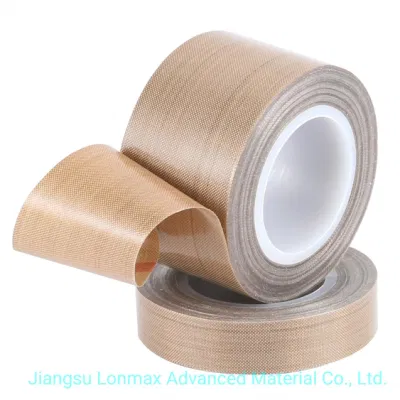

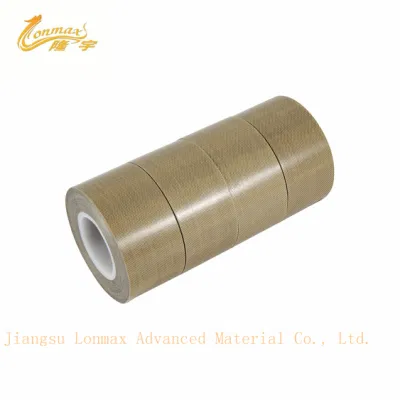

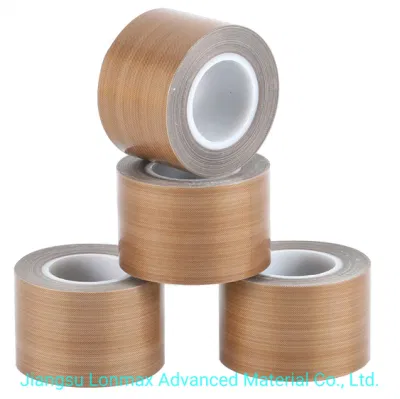

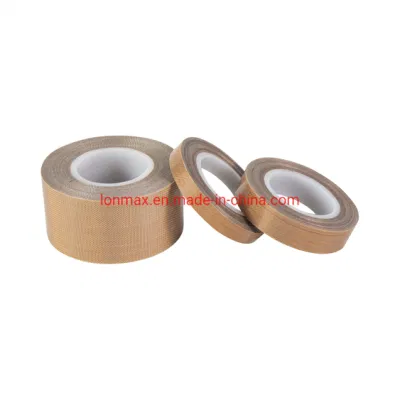

PTFE adhesive fabric /cloth without release paper.
Size and color can be customized.
Size and color can be customized.
Main thickness:
0.08mm, 0.13mm, 0.18mm, 0.25mm and 0.3mm.
Color:
Brown, Black or White.
| Item Name | Model No | Thickness | Width | Intial Adhesion Test /Times | Docking Test /Times | Temperature Range |
| PTFE Tape | FG008 | 0.08mm | 1250mm | ≥12 | ≥5 | "-70/+260ºC |
| FG013 | 0.13mm | 1250mm | ≥12 | ≥5 | "-70/+260ºC | |
| FG015 | 0.15mm | 1250mm | ≥12 | ≥5 | "-70/+260ºC | |
| FG018 | 0.18mm | 1250mm | ≥12 | ≥5 | "-70/+260ºC | |
| FG020 | 0.2mm | 1250mm | ≥15 | ≥5 | "-70/+260ºC | |
| FG025 | 0.25mm | 1250mm | ≥15 | ≥5 | "-70/+260ºC | |
| FG035 | 0.35mm | 1250mm | ≥15 | ≥5 | "-70/+260ºC |
Our factory will customize wooden boxes based on the size of the goods, with reinforced steel bars on the outside to ensure that the goods will not be damaged during transportation.
We owe our own factory and export company, save the costs from the origin.
Meanwhile,we have a special R&D team, can customize your requirements properly.
