Basic Info.
Model NO.
KC05
Trademark
Kaicheng
Origin
China
HS Code
70195900
Production Capacity
30000 Square Meter/Month
Product Description

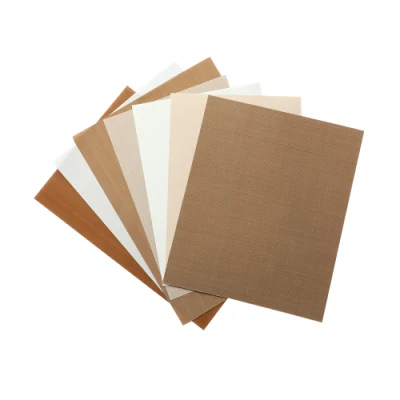

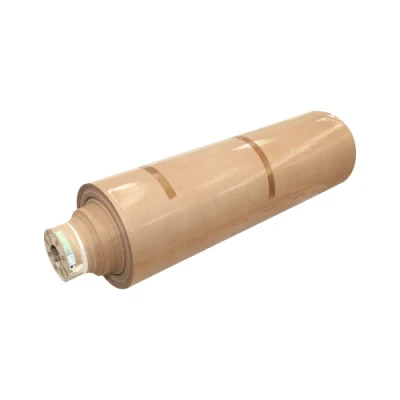

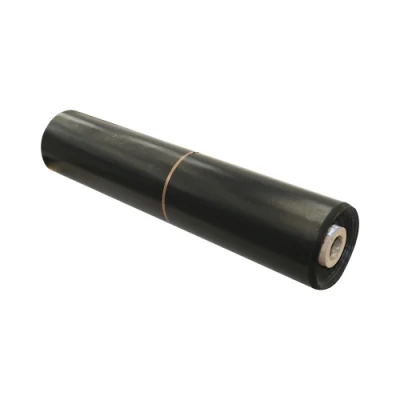

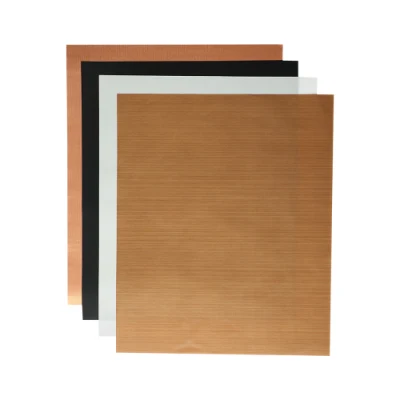

PTFE coated fiberglass fabric series
We use best imported Fiberglass as the weaving material to plain knit or specially knit into superior fiberglass basic cloth,by the unique technology, full immersion, impregnation, coat it with fine PTFE resin then make it into various PTFE Teflon high temperature resistance cloth in different thickness and widths.
Features of PTFE fiberglass fabric:
1. stable dimension, high intensity, elongation coefficient less 5‰
2. good temperature resistance, 24 hours working temperature -70-260ºC
3. low coefficient of friction and dielectric constant, good insulating ability
4. Non-sticky, easy to clear stains and adhesives on the surface
5. good chemical resistance, it can resist all most of chemical medicines, acids, alkalis, and salt, it is fireproof, lower in aging.
Applications of PTFE fiberglass fabric:
1.used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners.
2.used as non-sticky liners, cloth and so on.
3.According to the different thickness, used for a variety of drying machinery conveyor belt, adhesive tape, sealing tape, etc.
4.used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant
.
We use best imported Fiberglass as the weaving material to plain knit or specially knit into superior fiberglass basic cloth,by the unique technology, full immersion, impregnation, coat it with fine PTFE resin then make it into various PTFE Teflon high temperature resistance cloth in different thickness and widths.
Features of PTFE fiberglass fabric:
1. stable dimension, high intensity, elongation coefficient less 5‰
2. good temperature resistance, 24 hours working temperature -70-260ºC
3. low coefficient of friction and dielectric constant, good insulating ability
4. Non-sticky, easy to clear stains and adhesives on the surface
5. good chemical resistance, it can resist all most of chemical medicines, acids, alkalis, and salt, it is fireproof, lower in aging.
Applications of PTFE fiberglass fabric:
1.used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners.
2.used as non-sticky liners, cloth and so on.
3.According to the different thickness, used for a variety of drying machinery conveyor belt, adhesive tape, sealing tape, etc.
4.used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant
.
| Application of PTFE fiberglass cloth | Model | Thickness | weight | Temperature | Max Width | Tensile Strength |
| Industrial conveyor belt and welding | 9008 | 0.08 | 164.14 | -70-260 | 1250 | 430/330 |
| Industrial conveyor belt and welding | 9013 | 0.13 | 276.12 | -70-260 | 1250 | 560/345 |
| Industrial conveyor belt and welding | 9025 | 0.25 | 527.28 | -70-260 | 1250 | 650/420 |
| Industrial conveyor belt | 9035 | 0.35 | 609.33 | -70-260 | 4100 | 810/450 |
| Industrial conveyor belt | 9040 | 0.40 | 579.94 | -70-260 | 4100 | 950/500 |
| Industrial conveyor belt | 9045 | 0.45 | 915 | -70-260 | 4100 | 980/500 |
| Industrial conveyor belt | 9055 | 0.55 | 918.69 | -70-260 | 4100 | 1000/500 |
| Industrial conveyor belt | 9065 | 0.65 | 1060.12 | -70-260 | 4100 | 1080/580 |
| Industrial conveyor belt | 9085 | 0.85 | 1300 | -70-260 | 4100 | 1100/800 |
| Industrial conveyor belt | 9100 | 1.00 | 1621.47 | -70-260 | 4100 | 1500/1150 |
